Problem

Follow-ups to #574, the same ones wcandillon/react-native-skia#4266 makes to the Skia side; the first four fail on main and pass here:

1. zOrderMediaOverlay doesn't move a mounted canvas before Android 14, and nothing warns. takesZOrder lets both z-order props through from Android 11, but up to 13 SurfaceView.setZOrderMediaOverlay() only writes the sublayer the next surface is created with, and updateSurface() re-applies it only when it creates one (android-13); 14 compares the requested sublayer with the applied one (android-14). Its Javadoc asks for it before the window is attached.
2. On Android 13, a media overlay that leaves the top comes back among the other SurfaceViews. setZOrderOnTop(false) applies the default sublayer to the live surface at once (android-13), before setZOrderMediaOverlay(true) asks for its own. 11 to 12L apply it from a frame callback that reads the sublayer when it runs (android-12), and 14 re-applies the changed request.
3. android={{ opaque: false, zOrderOnTop: true }} compiles and gives a translucent TextureView: with no backingView the union can't pick a member, so its excess-property check accepts a key any member declares.
4. A backingView no view takes falls back to a TextureView silently: a JavaScript caller's typo gets the default view with nothing in development to say so.
5. The docs don't say that a SurfaceView canvas can leave black as it unmounts up to Android 12 (API 31): it removes its layer before the window frame without it lands. Since feat(🤖): name the Android backing view explicitly #574 a SurfaceView is one the app names, so the app needs to know.

Solution

• BackingViewKind has one in-place rule per z-order prop: zOrderOnTop from Android 11, except on a media overlay on 13, and zOrderMediaOverlay from 14. A change the rule refuses is ignored with a warning, like a backingView change; the JS warnings, the example's key and the docs follow, and the example gains a "surface media overlay on top" option.
• WebGPUSurfaceView.setZOrder() keeps the z-order it last asked of SurfaceView and asks only for a change, and WebGPUView hands it the props once per transaction, in updateView() with the opacity, so a change of both props moves the surface once.
• Every member of AndroidCanvasProps declares every option, never where it doesn't apply; Canvas resolves the union in one exhaustive switch, without the as AndroidOptions cast, and AndroidBackingView and the web spec's props derive from the codegen spec.
• In development, a JavaScript caller that hands the z-order options to a view that ignores them gets a warning, as on the Skia side, and so does one that names a backingView no view takes; the canvas keeps the default TextureView with the opacity asked for.
• The SurfaceView paragraph of the canvas page carries the unmount caveat.

Tests

src/__tests__/unit/android.test.tsx, in #529's unit tier: the union's type rules, the native props each android value resolves to, and the development warnings at mount and on a change, for each z-order prop on API 29, 30, 33 and 34 and for zOrderOnTop on a media overlay on API 30, 32, 33 and 34. Run against #529's head they fail for each defect: TS2322 on the union, and 6 of 29 cases (no warning for a media overlay change on API 30 and 33, for zOrderOnTop on a media overlay on API 33, for the z-order options on a TextureView or a HardwareBufferView, or for a backingView no view takes).

BackingViewKind's rules have no JVM test here: the library's Java gets a host tier with #561.

Verification

yarn lint · yarn tsc · package build · the Expo template's web build · yarn test:unit 38 passed · yarn test:plugin 10 passed · yarn semantic-release --dry-run · yarn build:docs · yarn check-dawn · cpplint · CI's Android e2e step: on an Android 15 emulator, 226 of 228, the two YUV cases that fail on main on that emulator too; on the revision before the last commit, which changes Canvas.tsx alone, on a Galaxy S23 (Android 14), 228 of 228, and on a Mi MIX 3 (Android 10), 200 of 200 without the AHardwareBuffer import suites, whose first import loses the device on that phone's Adreno 630 driver on main too. CI's iOS e2e step, a Debug build against Metro, on an iPhone 12 Pro Max (iOS 27.0.1): 228 of 228.

On Android 11, 12L, 13 and 14 emulators, a media overlay canvas over a second SurfaceView canvas, its z-order props changed in place (evidence comment): on main, the backdrop covers it once the media overlay is turned back on (11 to 13) or once it leaves the top (13). Here it keeps the z-order it mounted with, with a warning, wherever Android can't move it, and moves in place everywhere else, 14 included.

Related

Stacked on #529, whose unit tier holds the tests; the Skia side is wcandillon/react-native-skia#4266.

Base

Cut from main at c080934e: #529's re-cut, then three commits (the fix, the docs caveat, and the opacity and warning for a backingView no view takes); it merges cleanly with main at dbb17185.

[YevheniiKotyrlo]

The z-order of a mounted media overlay — before / after

On x86_64 emulator images, release builds of the example with a probe screen, the same JavaScript over main's native code and over this PR's. The screen mounts a media overlay SurfaceView canvas cleared red over a second SurfaceView canvas cleared green (mounted second, so it wins a tie in the default sublayer), and two buttons change the media overlay's zOrderOnTop and zOrderMediaOverlay in place, under the same key. After each step the media overlay layer's z is read from dumpsys SurfaceFlinger: 1 on top of the window, −1 the media overlay sublayer, −2 the default one.

Image	Build	Mount	zOrderOnTop on	zOrderOnTop off	zOrderMediaOverlay off	zOrderMediaOverlay on
API 30 (Android 11)	main	−1	1	−1	−2	−2
API 30	this PR	−1	1	−1	−1, warns	−1, warns
API 32 (Android 12L)	main	−1	1	−1	−2	−2
API 32	this PR	−1	1	−1	−1, warns	−1, warns
API 33 (Android 13)	main	−1	1	−2	−2	−2
API 33	this PR	−1	−1, warns	−1, warns	−1, warns	−1, warns
API 34 (Android 14)	main	−1	1	−1	−2	−1
API 34	this PR	−1	1	−1	−2	−1

A bold cell is a media overlay left in the default sublayer, where the other canvas covers it. On Android 13 that happens as soon as it leaves the top:

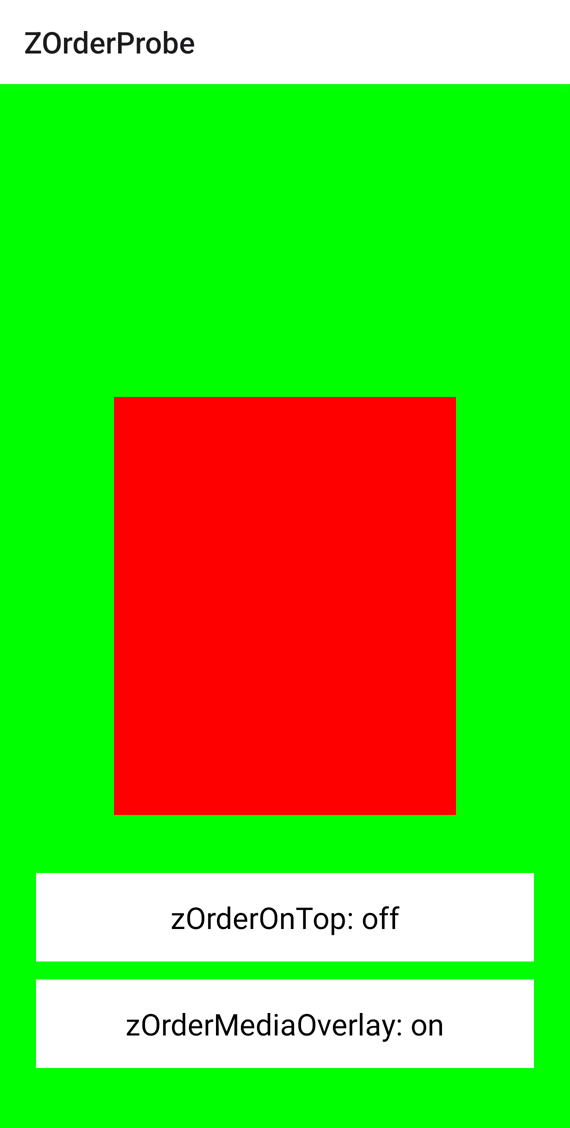

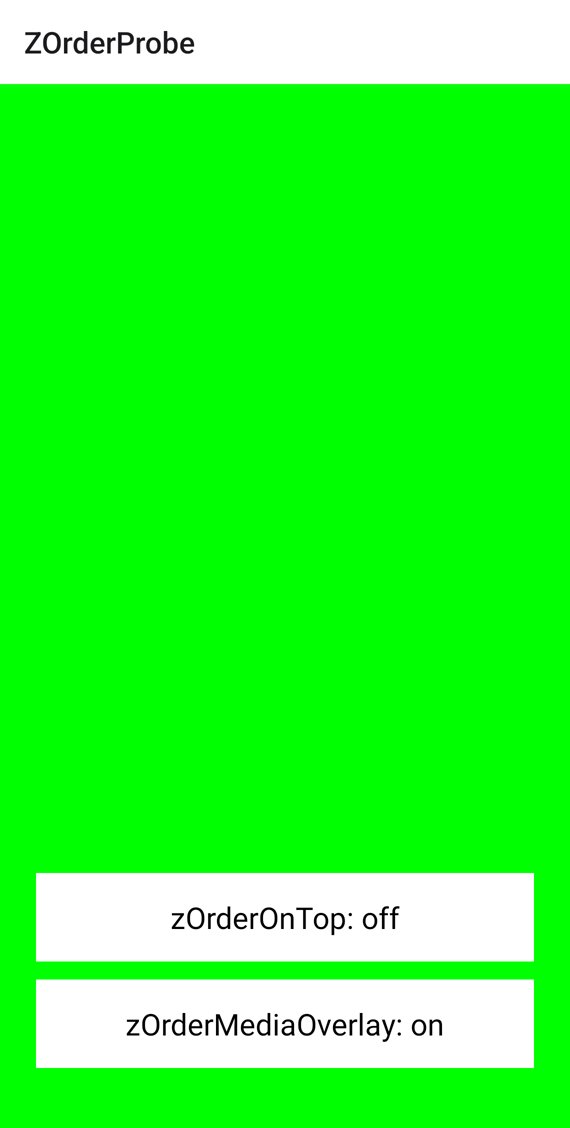

before — main, Android 13, zOrderOnTop turned on and off again

after — with this PR

With this PR a change Android can't apply to the live surface is ignored with a warning, and a remount takes it, as the example's key does; everywhere else it moves in place, as on main. The probe screen, each canvas clearing to its colour every 200 ms:

<View style={{ flex: 1 }}>
  <Canvas
    ref={red}
    style={{ position: "absolute", left: "20%", right: "20%", top: "30%", bottom: "30%" }}
    android={{ backingView: "SurfaceView", zOrderMediaOverlay: mediaOverlay, zOrderOnTop: onTop }}
  />
  <Canvas ref={green} style={StyleSheet.absoluteFill} android={{ backingView: "SurfaceView" }} />
  {/* two buttons toggling onTop and mediaOverlay */}
</View>

CI's Android e2e step on an API 35 emulator: 226 of 228 here, the two YUV cases main fails on that emulator too; on a Galaxy S23 (Android 14): 228 of 228; on a Mi MIX 3 (Android 10): 200 of 200 without the AHardwareBuffer import suites, which lose the device on that phone on main too.
