feat(apollo-wind): add ConnectionPicker by andreea-ene · Pull Request #1246 · UiPath/apollo-ui

andreea-ene · 2026-09-30T13:02:30Z

Replaces #1212, which was opened from a fork so the required checks couldn't run.

Targets main. This PR is a single commit that contains ResourcePicker as well as ConnectionPicker, so it can merge on its own. #1244 carries the same ResourcePicker without the additions below.

Adds ConnectionPicker, a field and popover for choosing the connection an activity runs with.

Why a separate component

ConnectionPicker is built on ResourcePicker rather than being a variant of it. The search, folders, keyboard model, empty states and footer are shared. What a connection adds is its own domain: a health, repair and edit actions, a message under the field and a schema refresh. As a variant prop, most of that would be props that only mean something for connections.

ResourcePicker additions

Generic extension points, useful to any picker built on it:

subtitle: a second line under a row's label
keywords: extra search terms for detail a row does not print
itemActions(item) => ResourceItemAction[]: a row's actions (id, label, optional text, icon, tone, onSelect). The row shows them as pointer shortcuts, revealed under the cursor; clicking one does not commit the row. They are hidden from assistive technology and never focusable, since a listbox option is atomic. Shift+Enter on the row under the cursor opens them as a real menu beside the row (actionsMenuLabel, default "Actions for …"): ArrowUp/ArrowDown move, Enter runs an action, Escape returns to the search, and Tab/Shift+Tab move on from the row
onTabOut: called when Tab leaves a row's actions menu with nothing after the list inside an embedded ResourcePickerContent; ResourcePicker uses it to close its popover and move on from the field
status: an error or warning state on the field, with aria-invalid for errors, plus aria-describedby for the consumer's message

The list is a single listbox, the one the search's aria-controls names, holding only role="group" elements and options. Group headings are labels, not buttons: clicking an open heading collapses it, ArrowLeft on a row collapses its group, and a collapsed group stays as one option ("Shared, collapsed", set by collapsedGroupLabel) that Enter, ArrowRight or a click reopens. The arrows only fold groups while the search is empty. Other ResourcePicker changes made in review: noMatchText(query) for the no-results message; a controlled query without onQueryChange makes the search readOnly and lets Escape dismiss; the clear control shows for any set value, even one not found in groups.

The field's classes are exported as resourcePickerTriggerClassName so pickers built on it match. The trailing padding now also applies in the Future themes, where future:px-4 used to override it and let the value run under the clear control. The row icon slot grows from 14px to 16px so image logos keep their detail.

ConnectionPicker

Health. A connection is connected, warning (usable but degraded, such as missing scopes) or broken. Rows show it as a second line. The field shows it as its leading dot, its border and, when unhealthy, a message underneath with the first sentence of statusReason (the whole reason on hover).
Order. Broken connections sort to the end of their folder. They stay choosable and repairable, but the list does not open on dead ends.
Naming. Rows and the field show the account, falling back to the connection name: a node bound to the wrong account is the mistake worth catching. The name stays searchable.
Logos. logo takes an image URL for the connector, such as the third-party SVGs in @uipath/apollo-ui-icons. icon remains for a glyph.
Actions. onFix adds Fix to broken rows, and to the message under the field once a broken or warning connection is chosen, so it must handle both. onEdit adds Edit to every row. onAddConnection adds a footer link, and with no connections and no value the field itself starts a new one (a value with no matching connection stays visible and clearable). onRefreshSchema adds a field menu while a connection is chosen, showing progress until its promise settles.
Validation. error puts the field in its error state with the message underneath, taking the place of the health message.
Localisation. strings (ConnectionPickerStrings, defaults in DEFAULT_CONNECTION_PICKER_STRINGS) covers every string without a prop of its own: health labels, fallback reasons, Fix/Edit, the footer link, the list name, the field menu, and ResourcePicker's noMatchText, collapsedGroupLabel and actionsMenuLabel.

Row actions are pointer shortcuts in the row and a Shift+Enter menu from the keyboard. Fix is also offered under the field once a broken or warning connection is chosen.

Screenshots

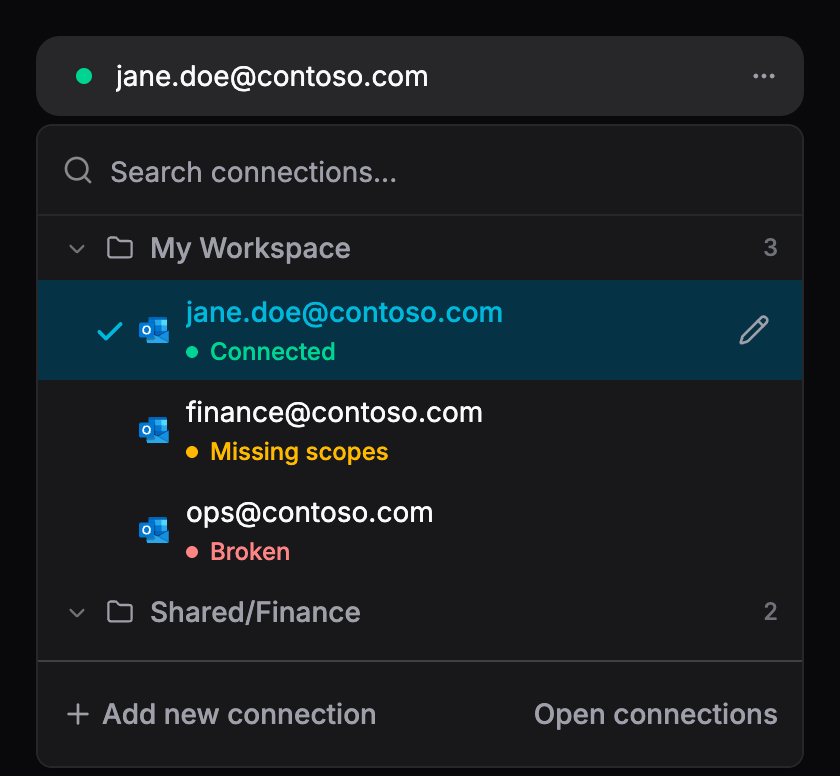

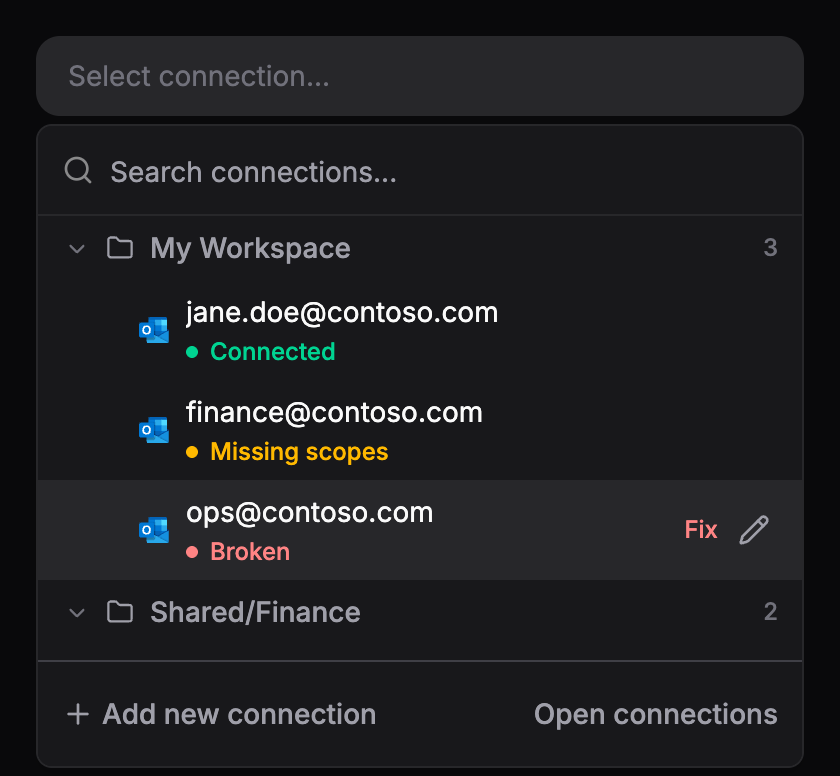

Every health, with row actions under the cursor	A chosen connection, with the schema menu

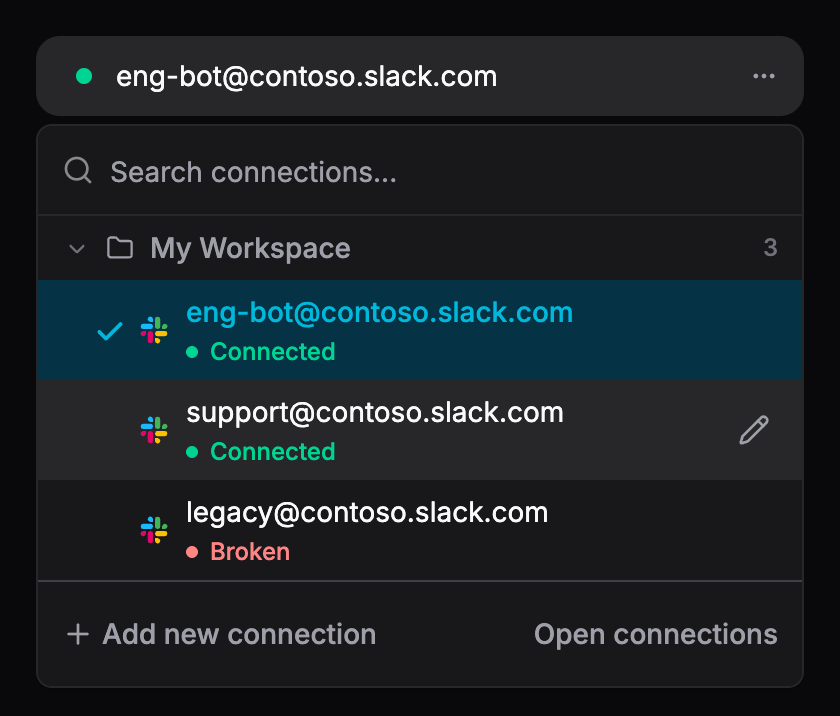

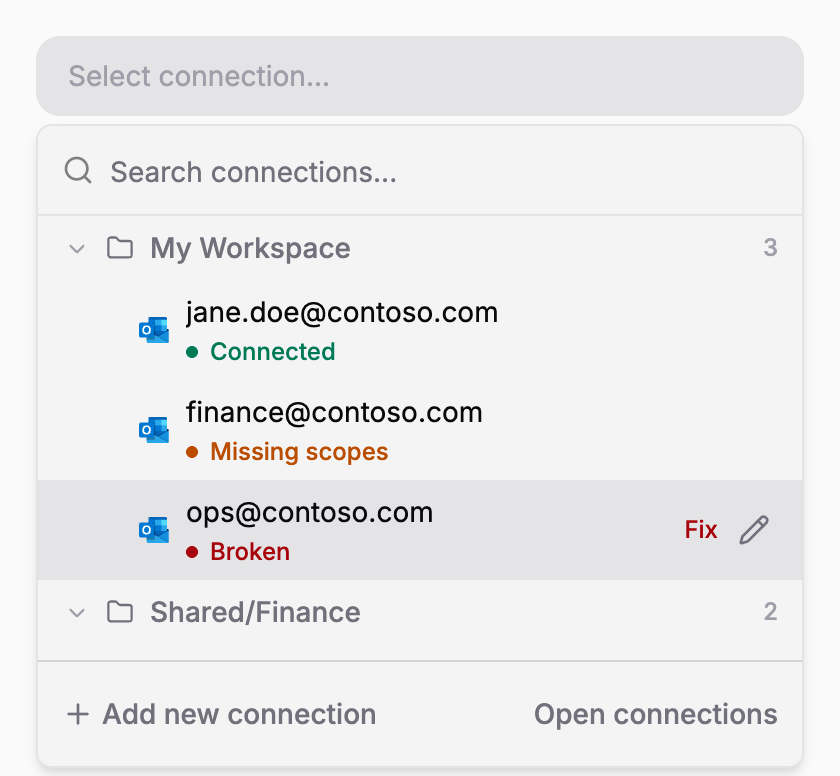

Another connector	Future Light

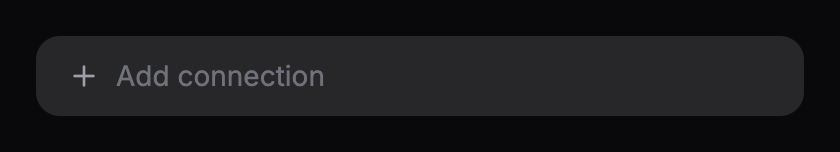

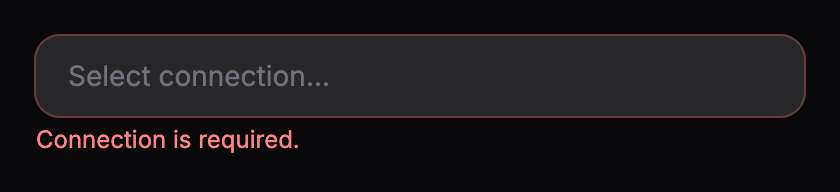

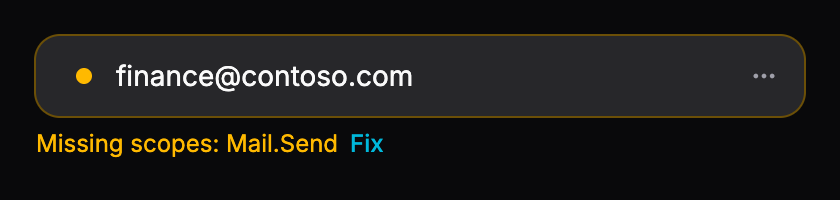

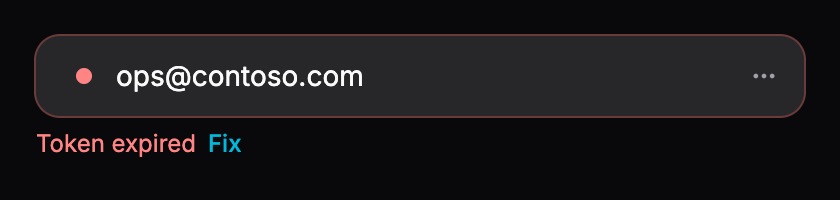

Field states: broken, missing scopes, required and no connections.

Stories

Components/Core/Connection Picker: Default, WithValue, Broken, MissingScopes, Slack, Required, NoConnections, SelectOnly, Disabled.

Checks

Run locally:

Check	Result
`biome format`	pass, 405 files
`biome check` (changed files)	pass
`tsc --noEmit`	pass
`vitest run` (connection-picker, resource-picker)	134 passed
`npm run build`	pass

🤖 Generated with Claude Code

github-actions · 2026-09-30T13:04:53Z

Dependency License Review

✅ 1947 package(s) scanned
✅ No license issues found
⚠️ 2 package(s) excluded (see details below)

License distribution

License	Packages
MIT	1713
ISC	91
Apache-2.0	56
BSD-3-Clause	28
BSD-2-Clause	23
BlueOak-1.0.0	8
MPL-2.0	4
MIT-0	3
CC0-1.0	3
MIT OR Apache-2.0	2
(MIT OR Apache-2.0)	2
Unlicense	2
LGPL-3.0-or-later	1
Python-2.0	1
CC-BY-4.0	1
(MPL-2.0 OR Apache-2.0)	1
Unknown	1
Artistic-2.0	1
(WTFPL OR MIT)	1
(BSD-2-Clause OR MIT OR Apache-2.0)	1
CC-BY-3.0	1
0BSD	1
(MIT OR CC0-1.0)	1
MIT AND ISC	1

Excluded packages

Package	Version	License	Reason
@img/sharp-libvips-linux-x64	1.3.4	LGPL-3.0-or-later	LGPL pre-built binary, not linked
khroma	2.1.0	Unknown	MIT per GitHub repo, missing license field in package.json

dbacomputer

Reviewed the changes against feat/resource-picker, including the earlier review fixes. The 63 existing ConnectionPicker/ResourcePicker tests pass locally. Two additional interaction regressions reproduced in targeted tests are noted inline; I recommend fixing these before approval.

uipathepixa-dogfood · 2026-10-12T11:59:43Z

Epixa-Dogfood Review

Review unavailable: required_pr_review_evidence_unavailable

Not reviewed: packages/apollo-wind/docs/LOCALIZATION_GUIDE.md, packages/apollo-wind/src/components/ui/connection-picker/components/connection-actions-menu.tsx, packages/apollo-wind/src/components/ui/connection-picker/components/connection-status.tsx +19 more

What this PR does

The pull request author describes the intended change as follows: feat(apollo-wind): add ConnectionPicker

This review did not reuse a local review of this change. Set up Epixa local review.

Full review: 34f53a1 0 findings

Copilot

🟡 Changes recommended

Two focus and value-announcement accessibility gaps remain in the new picker flows.

2 open findings

1 resolved since last review

Update PR description to document the itemActions API

🧠 Review effort: Balanced

Copilot

🟡 Changes recommended

Focus loss, incomplete localization, and inconsistent empty-error handling remain unresolved.

2 open findings

2 resolved since last review

🧠 Review effort: Balanced

Copilot

🟡 Changes recommended

Selection semantics, focus traversal, and one localization path remain incorrect.

4 open findings

🧠 Review effort: Balanced

Copilot

🟡 Changes recommended

Pointer row actions can unexpectedly remove focus from the picker search and interrupt keyboard navigation.

1 open finding

Prevent pointer-down default to preserve picker focus · New

4 resolved since last review

🧠 Review effort: Balanced

Copilot

🔵 Needs a closer look

The large custom keyboard, focus, and accessibility surface warrants final human validation despite comprehensive tests.

2 open findings

Add ResourcePicker to localization table · New
Update stale picker structure comment · New

1 resolved since last review

Prevent pointer-down default to preserve picker focus

🧠 Review effort: Balanced

Copilot

🔵 Needs a closer look

The custom keyboard, focus, portal, and accessibility interactions warrant final browser-based human validation despite strong automated coverage.

0 open findings

2 resolved since last review

🧠 Review effort: Balanced

Copilot

🟡 Changes recommended

Pointer-driven group toggles blur the search control and break subsequent keyboard navigation.

1 open finding

Keep search focused when clicking non-focusable group headings · New

🧠 Review effort: Balanced

Copilot

🟡 Changes recommended

Group pointer interactions can drop search focus, and actions-menu Tab-out can restore focus backward.

3 open findings

🧠 Review effort: Balanced

+          onCloseAutoFocus={(event) => {
+            if (!tabbingOut.current) return;
+            tabbingOut.current = false;
+            const field = fieldRef.current;
+            if (field && focusBeside(field, false)) event.preventDefault();
+          }}


Copilot

🟡 Changes recommended

Row-action menus can retain stale resources, and forward Tab can incorrectly restore focus to the picker trigger.

2 open findings

2 resolved since last review

🧠 Review effort: Balanced

+  /** The row whose actions menu is open, opened from the keyboard. */
+  const [actionsMenu, setActionsMenu] = useState<{
+    item: ResourceItem;
+    actions: ResourceItemAction[];
+    anchor: HTMLElement;
+  } | null>(null);


Copilot

🟡 Changes recommended

Focus-management defects and selection during disabled close transitions remain unresolved.

5 open findings

🧠 Review effort: Balanced

+  // else is left where it is.
+  useLayoutEffect(() => {
+    const button = addButtonRef.current;
+    if (!addOnly || !focusWithin.current || !button) return;


+        data-slot="resource-row-actions-menu"
+        align="end"
+        sideOffset={2}
+        className="w-auto min-w-36 p-1"


+            onSelect={(item: ResourceItem) => {
+              onSelect(item);
+              setOpen(false);
+            }}


ResourcePicker is a field and popover for choosing one record from a grouped list. It is generic over what it lists: a group is a heading with rows under it, and a row is an id, a label and an optional icon, so the same control serves Data Fabric entities, queues, storage buckets or anything else with that shape. Rows commit on click, so there is no Cancel and Select pair: one resource is one decision. The footer's two slots hold the ways out of the picker instead, which keeps product routes out of the component. Rows can also carry a subtitle, with a text form joined into their accessible name, search keywords they do not print, and trailing actions revealed under the cursor. The field has an error/warning status, and its trigger classes are exported so pickers built on it read as a pair. Built on Command and Popover, following VariablePicker, with the file layout FolderPicker uses. Selection is carried by a tick and a brand tint, kept apart from the neutral fill that marks the cursor: `surface-selected` and `surface-hover` resolve to the same value in every theme. ConnectionPicker builds on it to choose the connection an activity runs with, adding what only a connection has: - health on every row and on the field, as its leading dot, its border and a message underneath. A warning is named by its own reason's headline, falling back to "Needs attention" - broken connections sorted to the end of their folder - Fix on broken rows and under the field, Edit on every row and in the field menu, so both are reachable from the keyboard - an Add connection footer link, and with no connections at all the field itself starts one - a field menu to refresh the chosen connection's schema, showing progress while the returned promise is pending - an `error` message for validation, and the field's id and ARIA labelling forwarded to either trigger Rows and the field show the account, falling back to the connection name, since a node bound to the wrong account is the mistake worth catching. The name stays searchable. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

Copilot

🔵 Needs a closer look

Previously reported focus-management issues remain unresolved in the supplied code.

5 open issues

_{Review effort: Balanced}
